EVA Foam Sheet
EVA Foam Sheet

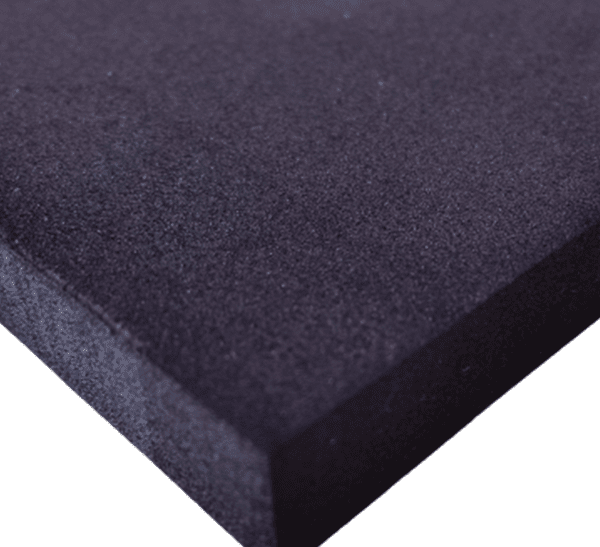

EVA foam is closed cell foam made from Ethylene Vinyl Acetate and blended copolymers. It has a high level of chemical cross linking. The result is semi-rigid product with a fine uniform cell structure that is suitable for use in a wide variety of situations and applications. Benefits of EVA Foam include;
- Impact and vibration absorption
- Weather and chemical resistance including splash resistance to oils and fuels
- Acoustic and thermal insulation properties
- Buoyancy with low water absorption
- Suitability for thermo-forming and thermo-moulding
More about EVA Foam

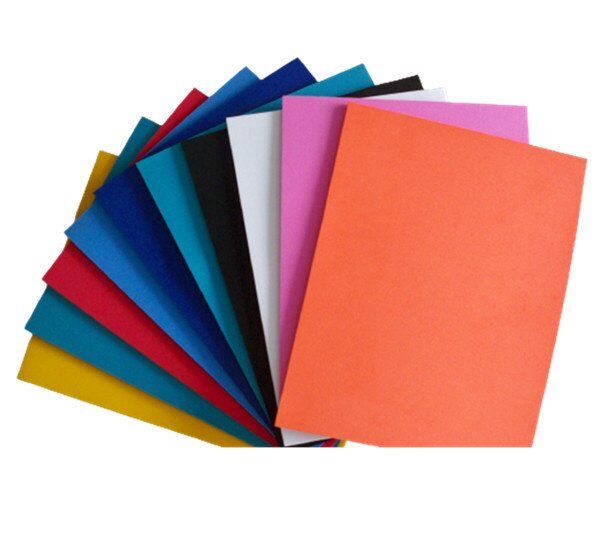

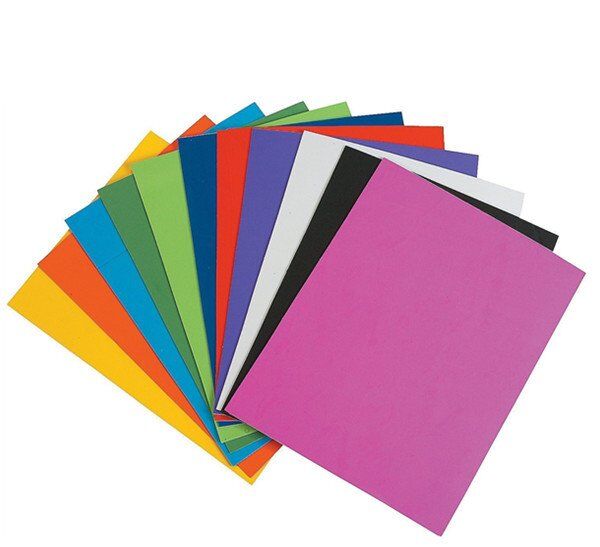

EVA and Polyethylene are similar forms of Closed Cell Foam; however EVA is softer and more resilient than Polyethylene, and has greater recovery characteristics after compression. We stock EVA Foam in a range of densities from 30 to 400 kg/m3 and in a variety of different colours.

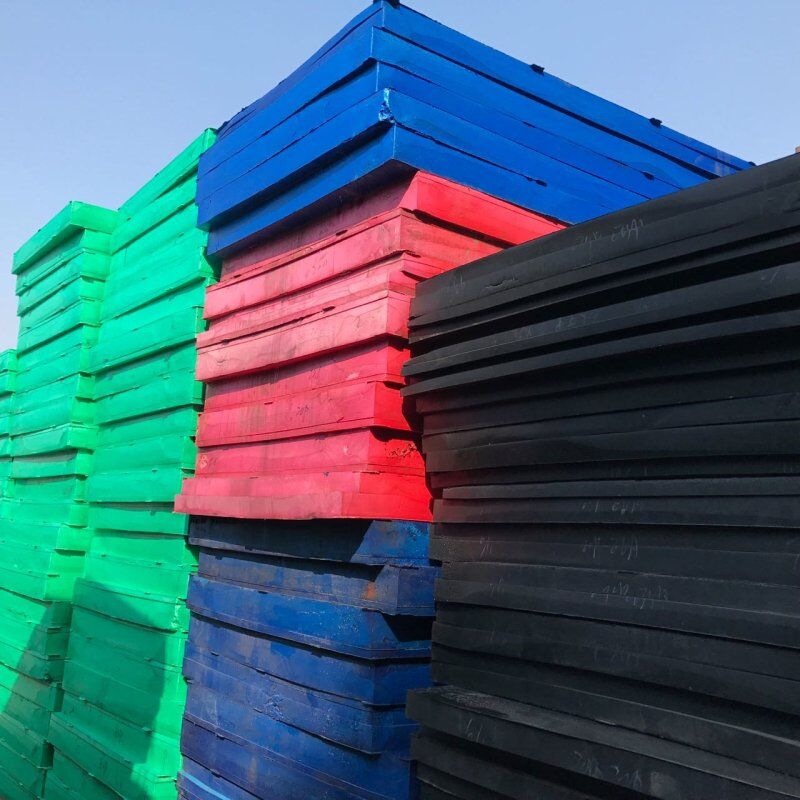

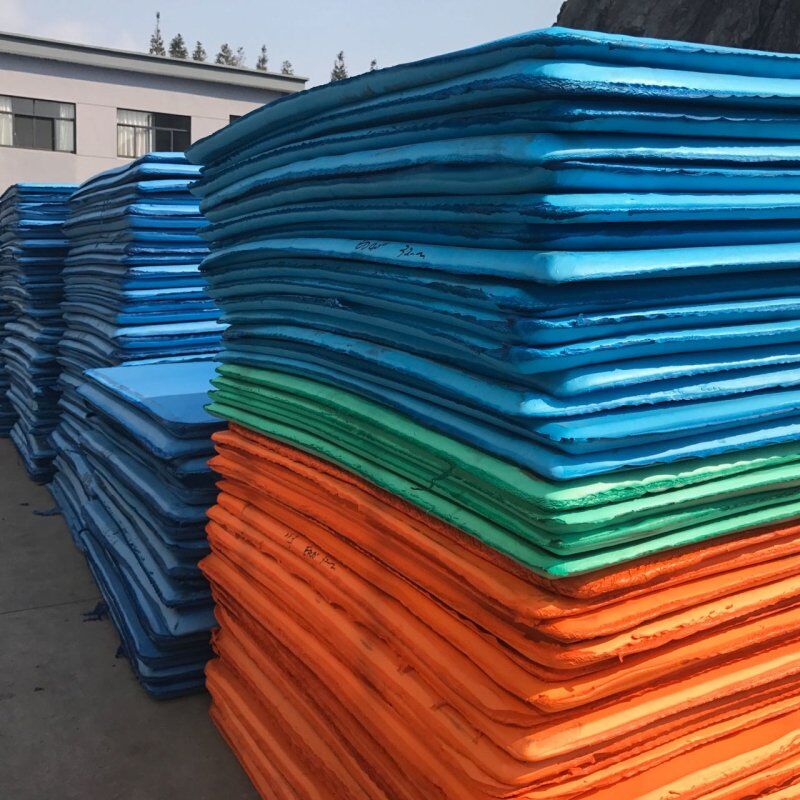

The foam is formed in a mould, resulting in a sheet of Closed Cell Foam known as a bun. The maximum length, width and thickness of the bun varies depending upon the foam’s density. We can cut the bun into sheets of the required thickness or fabricate the material into a particular shape, piece or profile
Popular Uses for EVA Foam
EVA Foam is an extremely versatile product suiting a broad range of different uses and applications. It is an effective replacement for many materials including felt, neoprene, natural rubber, polyurethane foam, pvc foam, wood composites, mineral wool and fibreglass.
Appliances
Automotive
Building
Marine
Electronics
| Health Care
Packaging
Sports & Leisure
Footwear
|
EVA Foam Density & Sheet Size Chart
Product – Density | Sheet Size | Max Thickness |
EVA30 – 30kg/m3 | 2000 x 1000mm | 40mm |
EVA45 – 45kg/m3 | 2000 x 1000mm | 40mm |
EVA60 – 60kg/m3 | 2000 x 1000mm | 36mm |
EVA75 – 75kg/m3 | 1900 x 940mm | 32mm |
EVA90 – 90kg/m3 | 1840 x 920mm | 30mm |
EVA105 – 105kg/m3 | 1300 x 1150mm | 24mm |
EVA120 – 120kg/m3 | 1250 x 1100mm | 24mm |
EVA190 – 190kg/m3 | 1120 x 1000mm | 30mm |
EVA220 – 220kg/m3 | 1070 x 950mm | 30mm |
EVA260 – 260kg/m3 | 1000 x 890mm | 30mm |
EVA350 – 350kg/m3 | 920 x 820mm | 30mm |
EVA400 – 400kg/m3 | 1150 x 850mm | 20mm |
Leave Messages：Please Feel free to give your inquiry in the form below.We will reply you in 24 hours.
Any questions, please feel free to contact us at email gary@evafoamrubber.com
Frequently Asked Question
We usually quote within 24 hours after we get your inquiry.Surely you can also contact us by email. so that we can quote in a short time.
Yes. Customization is acceptable for us including logo, shape, size as well as packing details.
After confirming the price, you can require for samples as well as other detailed information.
Generally for delivery is within 1-3 days. Usually we send the samples by express.Certainly you can use your own courier account or prepay us if you do not have one.
Honestly speaking, it depends on the order quantity and the actual production schedule. Generally the lead time 3-10 days.
The standard sheet size of the foam as it leaves our factory will vary by polymer grade and density. As a guideline, the most popular products are available as a sheet which is 2000mm X 1000mm X 30mm, but it is best to speak with our sales team before doing any detailed design or specification.
This high quality, ultra high density EVA foam was specifically designed for Cosplay and costuming needs. Many EVA foams out there claim to be “high density” when in fact most of them are low to average densities at around 30 kg/m³ (2 lb/ft³).
EVA foam is not anti-static by nature, but any foam can be made into an anti-static foam during the manufacturing process by adding certain chemicals to the blend.
EVA foam, or ethylene-vinyl acetate, is a closed-cell foam made from blended copolymers of ethylene and vinyl acetate. It has a high level of chemical cross-linking, which results in a semi-rigid product with a fine uniform cell structure.
